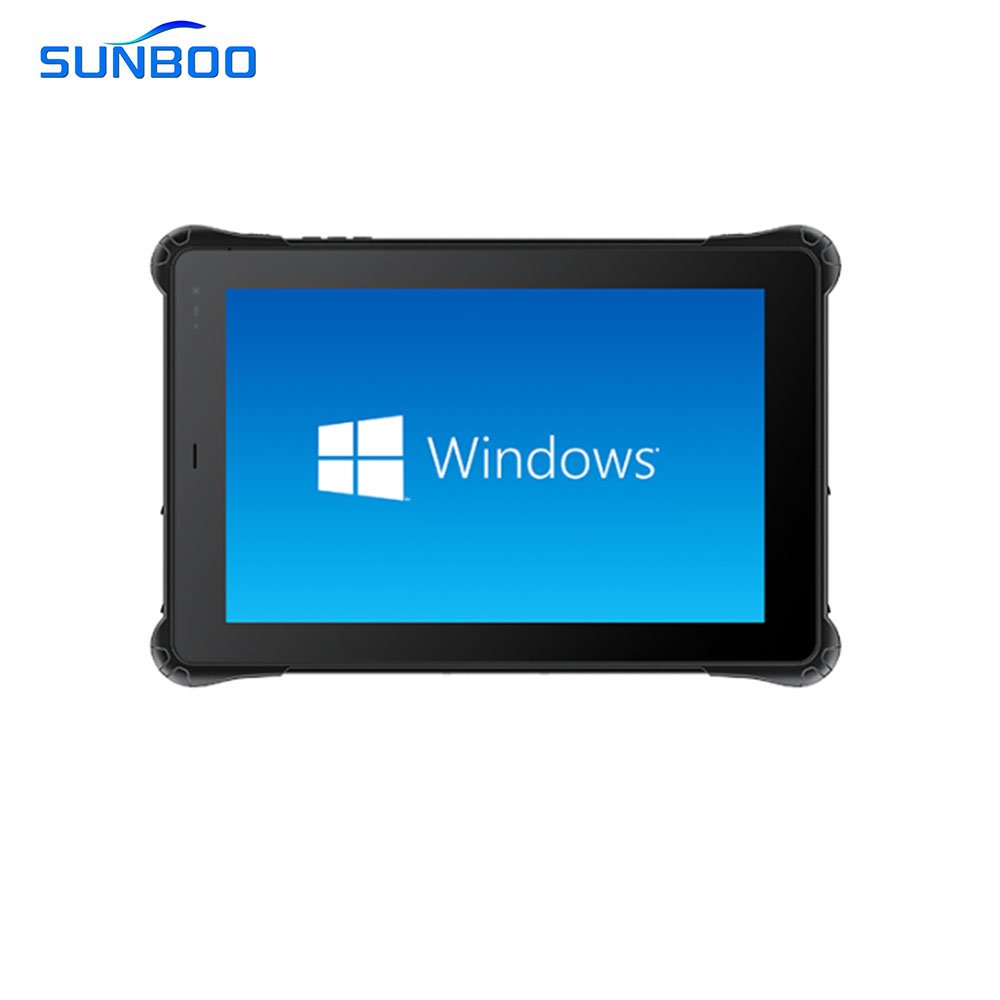

The 10.1 inch Windows rugged tablet is designed for industrial field operations, offering reliable performance with the Intel Celeron N5100 processor and Windows 10/11 OS. It delivers strong durability with IP67 sealing, MIL-STD-810H shock resistance, and a sunlight-readable display up to 700 nits. This rugged tablet is ideal for demanding environments such as manufacturing, logistics, warehouse management, and outdoor field service.
Key Features of 10.1 inch Windows rugged tablet
โ Intel Celeron N5100 (Jasper Lake) Processor
The N5100 processor offers stable performance for daily industrial applications. It ensures smooth multitasking for warehouse software, MES systems, and diagnostics. Moreover, its low power consumption helps extend battery life during long shifts.
โ 10.1” High-Brightness Touchscreen
The tablet features a 10.1-inch IPS display with up to 700 nits brightness, allowing clear viewing under sunlight. Additionally, the G+G capacitive touchscreen supports glove and wet-touch use, making it suitable for outdoor and factory operations.
โ Full Windows 10 / Windows 11 Compatibility
The system supports both Windows 10 and Windows 11, enabling seamless integration with mainstream industrial applications. This ensures flexibility for companies using legacy or modern software.
โ Rich Industrial I/O: RS232, RJ45, USB, HDMI
With RS-232, RJ45 Ethernet, USB 3.0, and Mini HDMI, the device connects easily to industrial sensors, printers, PLCs, and diagnostic tools. This wide compatibility improves deployment flexibility in field environments.
โ Optional Barcode, NFC, RFID, and Fingerprint Reader
The tablet integrates 1D/2D scanning, NFC, UHF RFID, and biometric authentication. These options enhance automation, traceability, and device security in industries such as logistics and field inspection.
โ 4G LTE + Dual-Band WiFi + GNSS
It supports global LTE bands, fast Wi-Fi, Bluetooth 4.2, and GNSS systems such as GPS, GLONASS, and BeiDou. As a result, workers benefit from stable connectivity and accurate navigation.
โ Long Battery Life with Removable Design
The removable 5000mAh battery provides up to 6 hours of continuous operation. Additionally, users can replace the battery in seconds to maintain 24/7 productivity.
โ IP67 and MIL-STD-810H Durability
Engineered to endure extreme temperatures, vibration, and accidental drops from 4ft, the device performs reliably in harsh industrial or outdoor environments.
Full Specification Parameter ofย ย Industrial Rugged Tablet
| Display | |
| Size | 10.1 inch |
| Touch Type | G+G Capacitive multi-touch screen, gorilla glass, hardness 7h |
| Resolution | 800 x 1280 (1200 x 1920 ย optional๏ผ |
| Luminance | 700 nits (1200 ร 800); 500 nits (1920 ร 1200) |
| Contrast Ratio | 800:01:00 |
| View Angles | 85 (left), 85 (right), 85 (up), 85 (down) |
| Color | 16.7M |
| System | |
| CPU | Intelยฎ Celeronยฎ N5100 (Jasper Lake), 4 MB Intelยฎ Smart Cache, up to 2.8 GHz |
| Memory | 4GB LPDDR4 (optional 8GB๏ผ |
| Storage | 64GB SSD (optional 128GB๏ผ |
| Graphics | Intelยฎ UHD Graphics Gen 11 LP |
| Camera | Front: 5MP fixed-focus camera |
| Rear: 8MP autofocus camera with flashย | |
| Sensor | G-sensor |
| Keypad & Keyboard | |
| Button | 1x Power button, 1x Volume+, 1x Volume -, 2x Barcode scan keys |
| I/O Ports | |
| USB | 1x USB 3.0 Type A |
| 1x USB 2.0 Type C (supports power charging and data transfer) | |
| Ethernet | 1x RJ45 10/100/1000M |
| Display | 1x Mini HDMI |
| Audio | 1x 3.5mm audio combo jack |
| SIM Card Slot | 1x Micro SIM card slot |
| TF Card Slot | 1x TF card slot, up to 256GB |
| Aviation Plug | 2x Aviation plug (choose two out of three from USB, RS232 or DC-in) |
| Docking Connector | 1x 12-Pin |
| RF Communication | |
| Wi-Fi | Wi-Fi 802.11 (a/b/g/n/ac), dual band (2.4G + 5.0G) |
| Cellular | WCDMA/HSPA+: B1/B5/B8 |
| FDD LTE: B1/B3/B5/B7/B8/B20/B28 | |
| TDD LTE: B34/B38/B39/B40/B41 | |
| Bluetooth | Bluetooth V4.2 |
| GNSS | GPS, GLONASS, BeiDou |
| Data Collection๏ผOptional๏ผ | |
| NFC | 13.56MHz, supports ISO/IEC 14443A/14443B/15693/18092/mifare |
| RFID | UHF RFID,supportsย PR9200 |
| Barcode Reader | 1D, 2D barcode reader |
| Fingerprint | FBI/ISO/GA certification |
| Audio | |
| Speaker | 8ฮฉ/1W, dual stero speakers |
| MIC | Built-in microphone |
| Power | |
| Power Adapter | Input AC: 100-240V, 50-60Hz, Output DC: PD65W |
| Battery | Removable lithium-ion polymer battery, 7.6V 5000mAh |
| Battery Life | 6 hours |
| Operating System | |
| Windows | Windows 10, Windows 11 |
| Mechanical | |
| Dimensions (W x D x H) | 280 x 188 x 23mm (11.02 x 7.40 x 0.91 inches) |
| Weight (N.W.) | 1200g (2.65 lbs) |
| Environment | |
| Operating Temperature | -10 ยฐCย toย 50 ยฐC (14ย toย 122ยฐF) |
| Storage Temperature | -20 ยฐCย toย 60 ยฐC (-4ย toย 140ยฐF) |
| Relative Humidity | 95% @ 40ยฐC (104ยฐF), non-condensing |
| Vibration | MIL-STD-810H: 2022 method 514.8 procedure I |
| Drop | MIL-STD-810H: 2022 method 516.8 procedure IV, 4ft |
| IP Rating | IP67 |
| Certification | |
| EMC | CE, FCC |
